Tyre stability rig

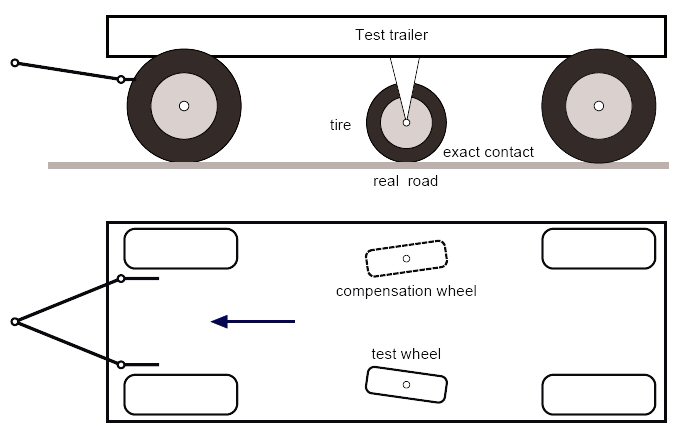

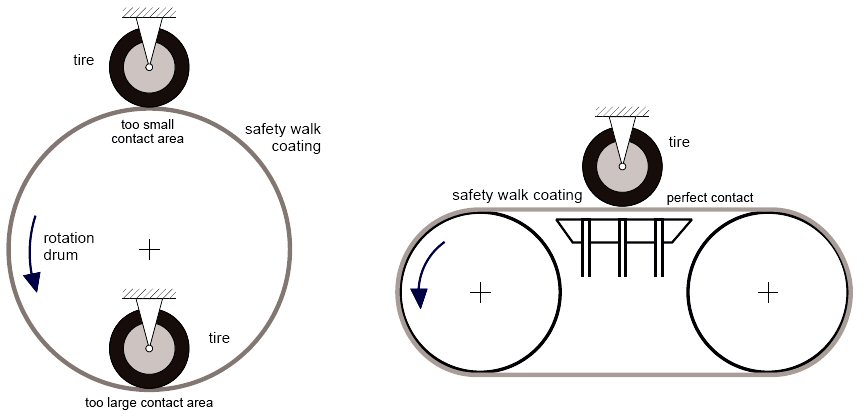

The basic layouts of the tyre stability rigs are shown in the diagrams. The main type of tests that can be carried out on the rigs are as follows:

Dynamic tyre spring rates
Lateral forces (cornering)
Longitudinal forces (braking and drive)
Self aligning torque
Camber sensitivity
Pressure sensitivity



All tests are normally carried out with sweeps in slip angles, normal loads, camber angles and pressures.
